Input specifications
- Voltage min (V)
- 360
- Voltage max (V)
- 440
- Frequency (Hz)
- 50
- Phases
- 3
- Power (kW)
- 120
DC
Chargeoevtech

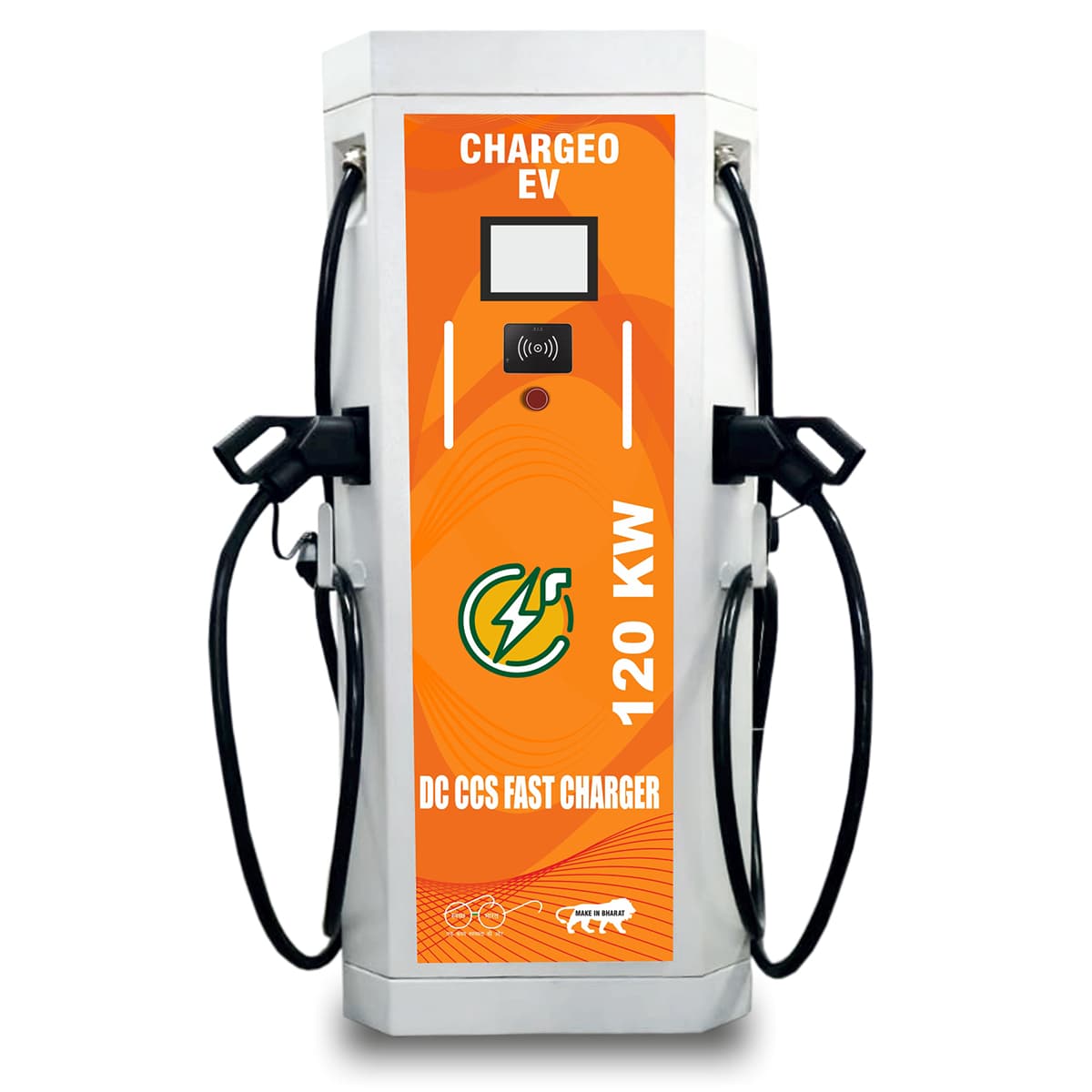

DC Fast Chargers 120 KW
DC CCS2 Stand Alone
Experience the future of EV charging with our 120 kW DC fast charger, charging electric vehicles up to 80% in just 45 minutes. Attract more customers and eliminate range anxiety while promoting sustainability. Upgrade your charging station today and lead the way in the green mobility revolution.
Technical Specifications
Output characteristics
- Frequency (Hz)
- 50
- Max current (A)
- 400
Recommended environment
- Ambient min (°C)
- 0
- Ambient max (°C)
- 50
- Storage min (°C)
- 0
- Storage max (°C)
- 70
- Humidity min (%)
- 5
- Humidity max (%)
- 95
- Altitude max (m)
- 2000
Protection
- IP rating
- 54
- Cooling type
- Natural Cooled
- Overheating protection
- Yes
- Earth leakage protection
- Yes
Communication
- GSM
- Yes
- LAN
- No
- Wi-Fi
- Yes
- Ethernet
- Yes
- Supported protocols
- OCPP_1_6
Dimensions
- Height (mm)
- 680
- Width (mm)
- 440
- Length (mm)
- 280
