Input specifications
- Voltage max (V)
- 415
- Frequency (Hz)
- 50
- Phases
- 3
DC
Bijlify

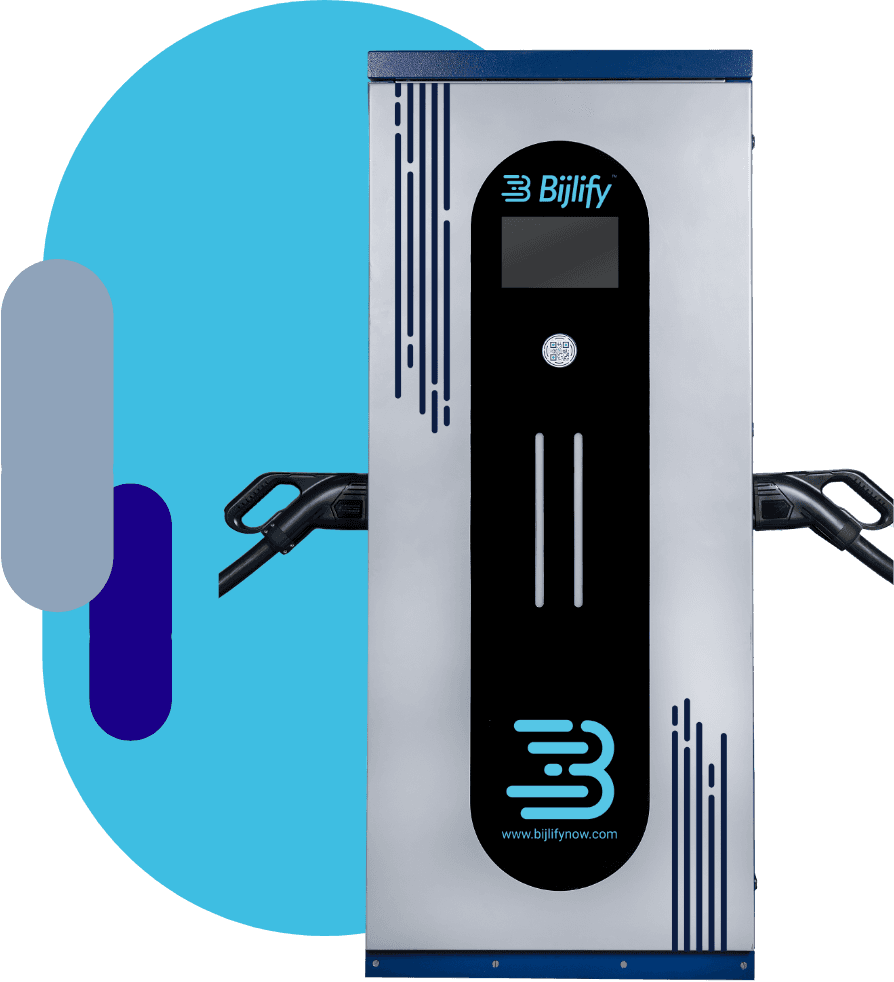

Bijlify X’TREME - II 60kW DC Fast Charger
DC CCS2 Stand Alone
60kW DC CCS2 Fast Charger has complete protection system which includes surge protection, residual current devices, short circuit, over/under voltage etc. The Fast charger comes equipped with network communication capabilities to connect with remote network systems and provide real-time information, such as the locations of charging stations, charging parameters and billing information. Ideal for indoor/outdoor fast charging operations.
Technical Specifications
Output characteristics
- Frequency (Hz)
- 50
- Max current (A)
- 150
Recommended environment
- Ambient min (°C)
- -5
- Ambient max (°C)
- 60
- Storage min (°C)
- -5
- Storage max (°C)
- 70
- Humidity min (%)
- 5
- Humidity max (%)
- 95
- Altitude max (m)
- 2000
Protection
- IP rating
- 54
- Cooling type
- Forced Cooled
- Overheating protection
- Yes
- Earth leakage protection
- Yes
Communication
- GSM
- Yes
- LAN
- Yes
- Wi-Fi
- Yes
- Ethernet
- No
- Supported protocols
- OCPP_1_6
Dimensions
- Height (mm)
- 650
- Width (mm)
- 450
- Length (mm)
- 1600
