Input specifications
- Voltage min (V)
- 208
- Voltage max (V)
- 240
- Frequency (Hz)
- 60
- Phases
- 1
- Power (kW)
- 11
AC

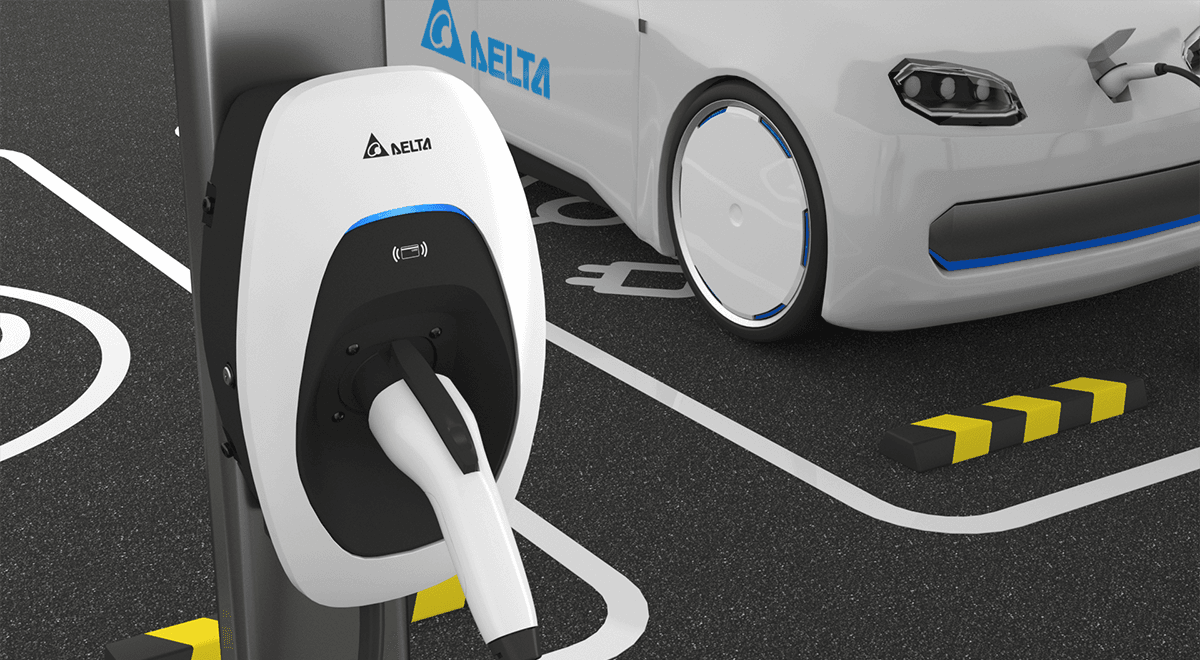

Delta Electronics
AC MAX
AC TYPE2 11 kW Output Wall Mounted
● 22kW AC charger improves parking turnover ● RFID and ISO 15118 authentication for user management ● Low standby power consumption for energy-saving ● Remote management by built-in network connectivity ● OCPP compliance enables back end system integration ● IP55 and wall mount/stand installation
Technical Specifications
Output characteristics
- Frequency (Hz)
- 60
- Rating (kW)
- 11
- Max current (A)
- 32
Recommended environment
- Humidity min (%)
- 5
- Humidity max (%)
- 95
- Altitude max (m)
- 2000
Protection
- IP rating
- 55
- Cooling type
- Natural Cooling
- Overheating protection
- Yes
- Earth leakage protection
- Yes
Communication
- GSM
- Yes
- LAN
- No
- Wi-Fi
- Yes
- Ethernet
- Yes
- Supported protocols
- OCPP_1_6
Dimensions
- Height (mm)
- 218
- Width (mm)
- 371
- Length (mm)
- 167
- Weight (kg)
- 3.8
