Input specifications
- Voltage max (V)
- 415
- Frequency (Hz)
- 50
- Phases
- 3
- Power (kW)
- 60
DC
E Fill Electric

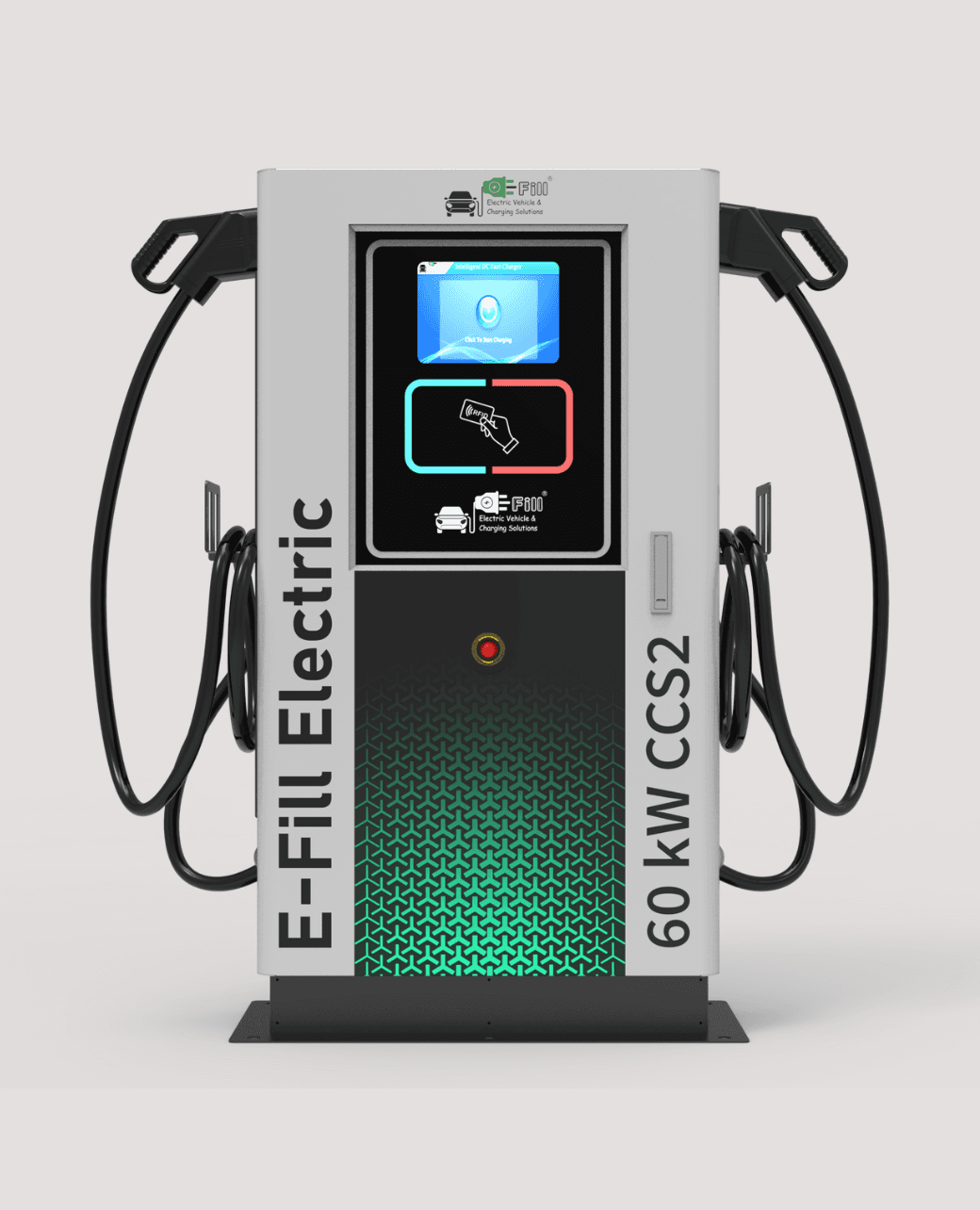

X4 Series EV Charger
DC CCS2 60 kW Output Stand Alone
Easy Installation Waterproof IP-54 Multiple Fault Protection On Board Earthing Protection Safe And Reliable Surge Protection Earthing Protection Emergency Switch Available
Technical Specifications
Output characteristics
- Frequency (Hz)
- 50
- Rating (kW)
- 60
- Max current (A)
- 200
Recommended environment
- Ambient min (°C)
- -20
- Ambient max (°C)
- 55
- Storage min (°C)
- -20
- Storage max (°C)
- 75
- Humidity min (%)
- 5
- Humidity max (%)
- 95
- Altitude max (m)
- 2000
Protection
- IP rating
- 54
- Cooling type
- Forced Air Cooling
- Overheating protection
- Yes
- Earth leakage protection
- Yes
Communication
- GSM
- Yes
- LAN
- No
- Wi-Fi
- Yes
- Ethernet
- Yes
- Supported protocols
- OCPP_1_6
Dimensions
- Height (mm)
- 1295
- Width (mm)
- 690
- Length (mm)
- 240
- Weight (kg)
- 120
