Input specifications
- Voltage max (V)
- 415
- Frequency (Hz)
- 50
- Phases
- 3
DC
E Fill Electric

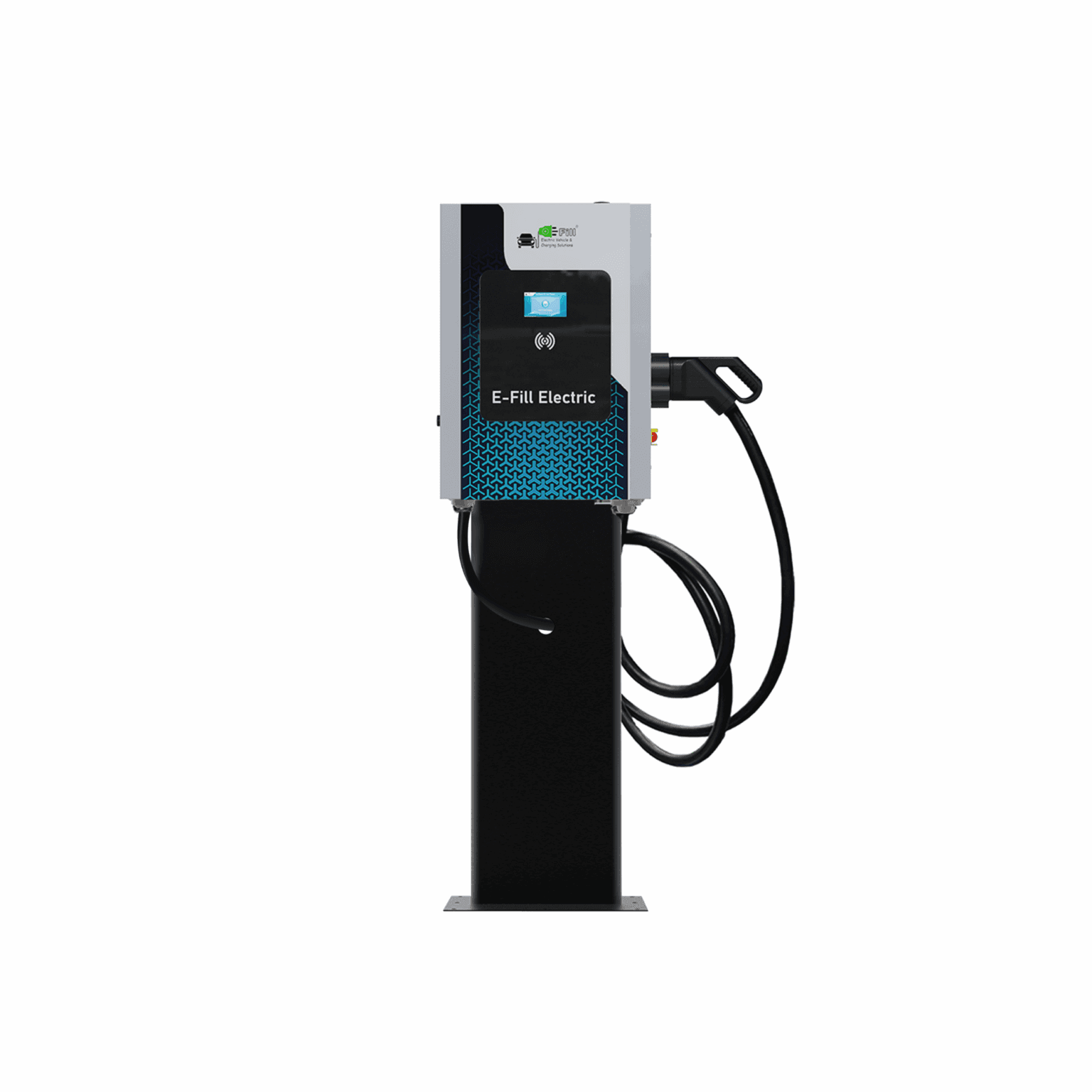

X3 Series EV Charger
DC CCS2 30 kW Output Stand Alone
Compact Size 4.3 LCD Touch Screen IP54 Rated 4G/ WiFi/ Ethernet Connectivity Over Heating Protection Under Voltage Protection Short Circuit Protection Over Current Protection
Technical Specifications
Output characteristics
- Frequency (Hz)
- 50
- Rating (kW)
- 30
- Max current (A)
- 45
Recommended environment
- Ambient min (°C)
- 0
- Ambient max (°C)
- 60
- Storage min (°C)
- -10
- Storage max (°C)
- 55
- Humidity min (%)
- 5
- Humidity max (%)
- 95
- Altitude max (m)
- 2000
Protection
- IP rating
- 54
- Cooling type
- Forced Air Fan Cooling
- Overheating protection
- Yes
- Earth leakage protection
- Yes
Communication
- GSM
- Yes
- LAN
- No
- Wi-Fi
- Yes
- Ethernet
- Yes
- Supported protocols
- OCPP_1_6
Dimensions
- Height (mm)
- 1400
- Width (mm)
- 200
- Length (mm)
- 100
- Weight (kg)
- 20
