Input specifications
- Voltage max (V)
- 230
- Frequency (Hz)
- 50
- Phases
- 1
- Power (kW)
- 7
AC
E Fill Electric

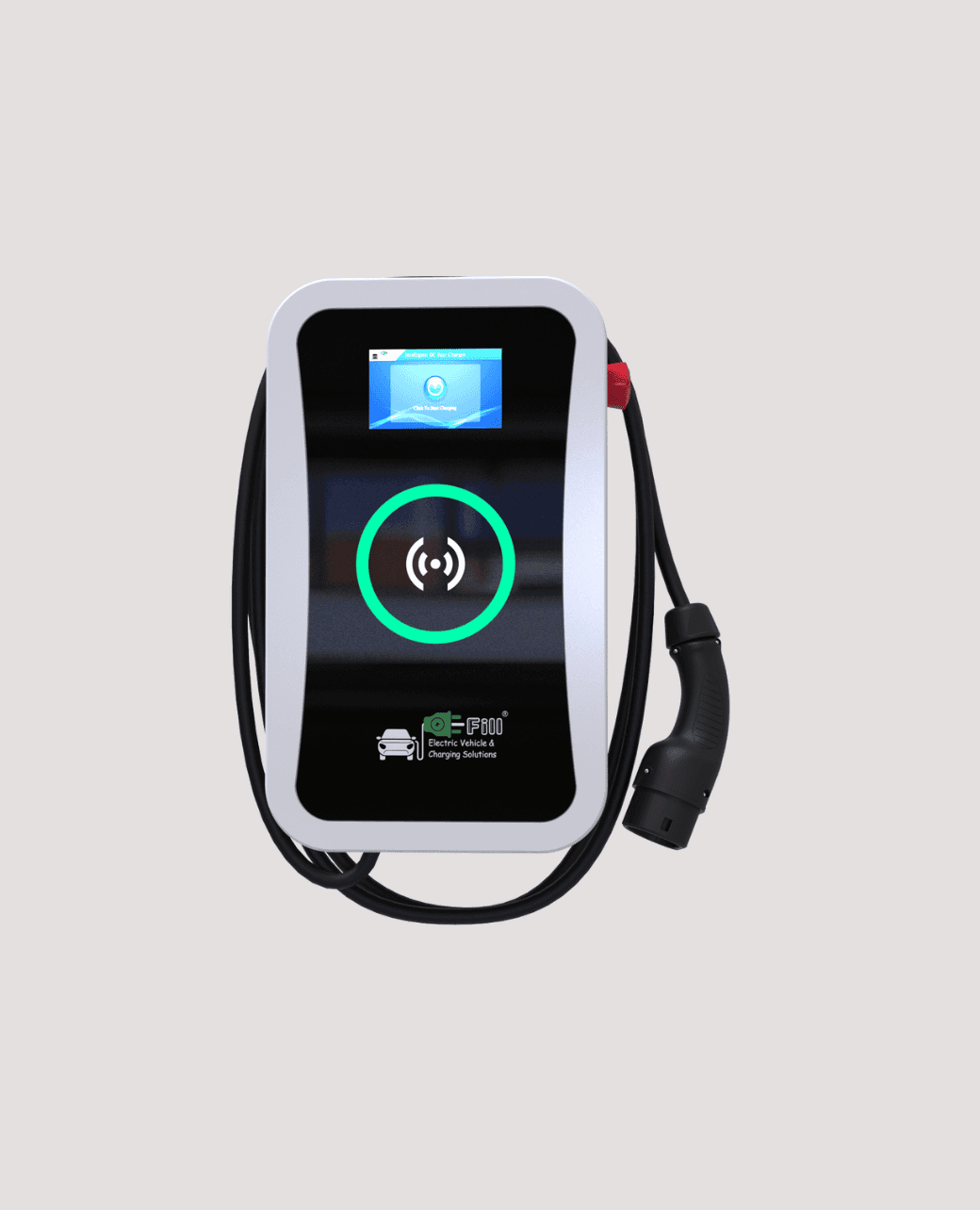

X2 Series EV Charger
AC TYPE2 7 kW Output Wall Mounted
RFID Card Reader/ App Interface Functions Customization Wall Mounted or Pole Mounted LCD Screen
Technical Specifications
Output characteristics
- Voltage (V)
- 230
- Frequency (Hz)
- 50
- Rating (kW)
- 7
- Max current (A)
- 32
Recommended environment
- Ambient min (°C)
- -30
- Ambient max (°C)
- 55
- Storage min (°C)
- -40
- Storage max (°C)
- 75
- Humidity min (%)
- 5
- Humidity max (%)
- 95
- Altitude max (m)
- 2000
Protection
- IP rating
- 54
- Cooling type
- Natural Cooling
- Overheating protection
- Yes
- Earth leakage protection
- Yes
Communication
- GSM
- No
- LAN
- No
- Wi-Fi
- No
- Ethernet
- Yes
- Supported protocols
- OCPP_1_6
Dimensions
- Height (mm)
- 410
- Width (mm)
- 250
- Length (mm)
- 164
- Weight (kg)
- 12
