Input specifications
- Voltage min (V)
- 270
- Voltage max (V)
- 480
- Frequency (Hz)
- 50
- Phases
- 3
- Power (kW)
- 20
DC
EV Charge Man

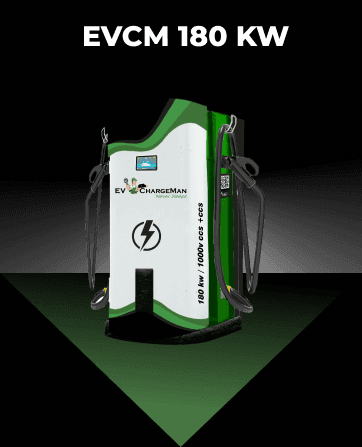

EVCM 180kW
DC CCS2 Stand Alone
EVCM’s dual output DC Chargers advances EV compatibility at public charging sites. Its ground-mounted and modular design ensures cost- efficient installation and lifecycle maintenance. It also features built-in network connectivity for authentication and remote control applications.
Technical Specifications
Output characteristics
- Voltage (V)
- 920
- Frequency (Hz)
- 50
- Max current (A)
- 375
Recommended environment
- Humidity min (%)
- 5
- Humidity max (%)
- 95
Protection
- IP rating
- 65
- Cooling type
- Forced Cooling
- Overheating protection
- Yes
- Earth leakage protection
- Yes
Communication
- GSM
- Yes
- LAN
- No
- Wi-Fi
- Yes
- Ethernet
- Yes
- Supported protocols
- OCPP_1_6
