Input specifications
- Voltage min (V)
- 270
- Voltage max (V)
- 480
- Frequency (Hz)
- 50
- Phases
- 3
DC
EV Charge Man

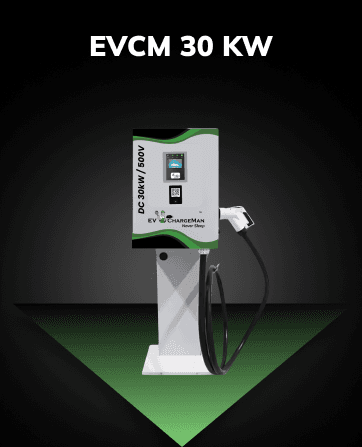

EVCM DC 30 kW
DC CCS2 20 kW Output Stand Alone
EVCM’s dual output DC Chargers advances EV compatibility at public charging sites. Its ground-mounted and modular design ensures cost-efficient installation and lifecycle maintenance. It also features built-in network connectivity for authentication and remote control applications.
Technical Specifications
Output characteristics
- Voltage (V)
- 900
- Frequency (Hz)
- 50
- Rating (kW)
- 20
- Max current (A)
- 250
Recommended environment
- Ambient min (°C)
- -30
- Ambient max (°C)
- 50
- Storage min (°C)
- -40
- Storage max (°C)
- 85
- Humidity min (%)
- 5
- Humidity max (%)
- 95
- Altitude max (m)
- 2000
Protection
- IP rating
- 65
- Cooling type
- Forced Air
- Overheating protection
- Yes
- Earth leakage protection
- Yes
Communication
- GSM
- Yes
- LAN
- No
- Wi-Fi
- Yes
- Ethernet
- Yes
- Supported protocols
- OCPP_1_6
