Input specifications
- Voltage min (V)
- 240
- Voltage max (V)
- 277
- Frequency (Hz)
- 50
- Phases
- 1
AC

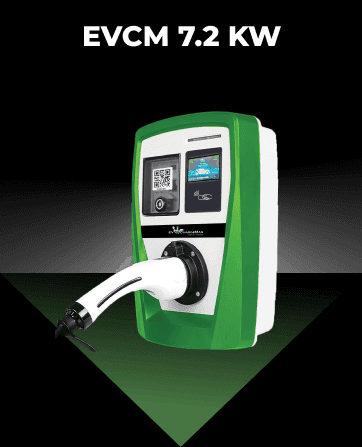

EV Charge Man
EVCM 7.2kW
AC TYPE2 7.2 kW Output Wall Mounted
EVCM’s Domestic/Commercial AC Chargers advance EV compatibility at public charging sites. Its wall-mounted and modular design ensures cost- efficient installation and lifecycle maintenance. It also features built-in network connectivity for authentication and remote-control applications.
Technical Specifications
Output characteristics
- Frequency (Hz)
- 50
- Rating (kW)
- 7.2
- Max current (A)
- 32
Recommended environment
- Altitude max (m)
- 2000
Protection
- IP rating
- 65
- Cooling type
- Natural air
- Overheating protection
- Yes
- Earth leakage protection
- Yes
Communication
- GSM
- Yes
- LAN
- No
- Wi-Fi
- Yes
- Ethernet
- Yes
- Supported protocols
- OCPP_1_6
Dimensions
- Height (mm)
- 360
- Width (mm)
- 272
- Length (mm)
- 90
