Input specifications
- Voltage min (V)
- 230
- Frequency (Hz)
- 50
- Phases
- 1
AC
Rapid EV Charge

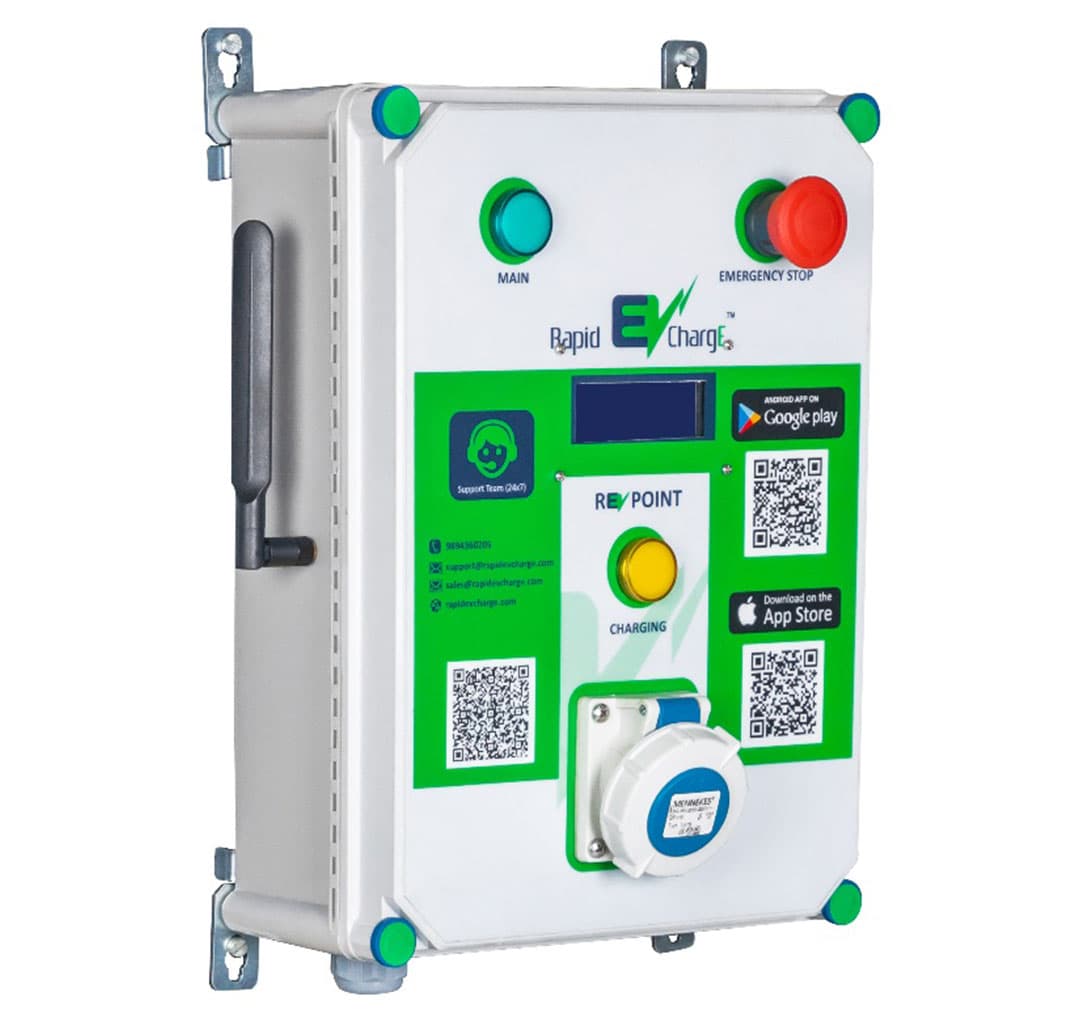

RCPAC-002 (AC Slow Charger)
AC TYPE2 Wall Mounted
Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Earth Leakage, Ground fault - 30mA
Technical Specifications
Output characteristics
- Voltage (V)
- 230
- Frequency (Hz)
- 50
- Max current (A)
- 15
Recommended environment
- Ambient min (°C)
- 0
- Ambient max (°C)
- 55
- Storage min (°C)
- 20
- Storage max (°C)
- 70
- Humidity max (%)
- 95
- Altitude max (m)
- 2000
Protection
- IP rating
- 55
- Cooling type
- Natural
- Overheating protection
- Yes
- Earth leakage protection
- Yes
Communication
- GSM
- Yes
- LAN
- Yes
- Wi-Fi
- Yes
- Ethernet
- Yes
- Supported protocols
- OCPP_1_6
Dimensions
- Height (mm)
- 180
- Width (mm)
- 380
- Length (mm)
- 130
