Input specifications
- Voltage min (V)
- 200
- Voltage max (V)
- 1000
- Phases
- 3
DC
Reach

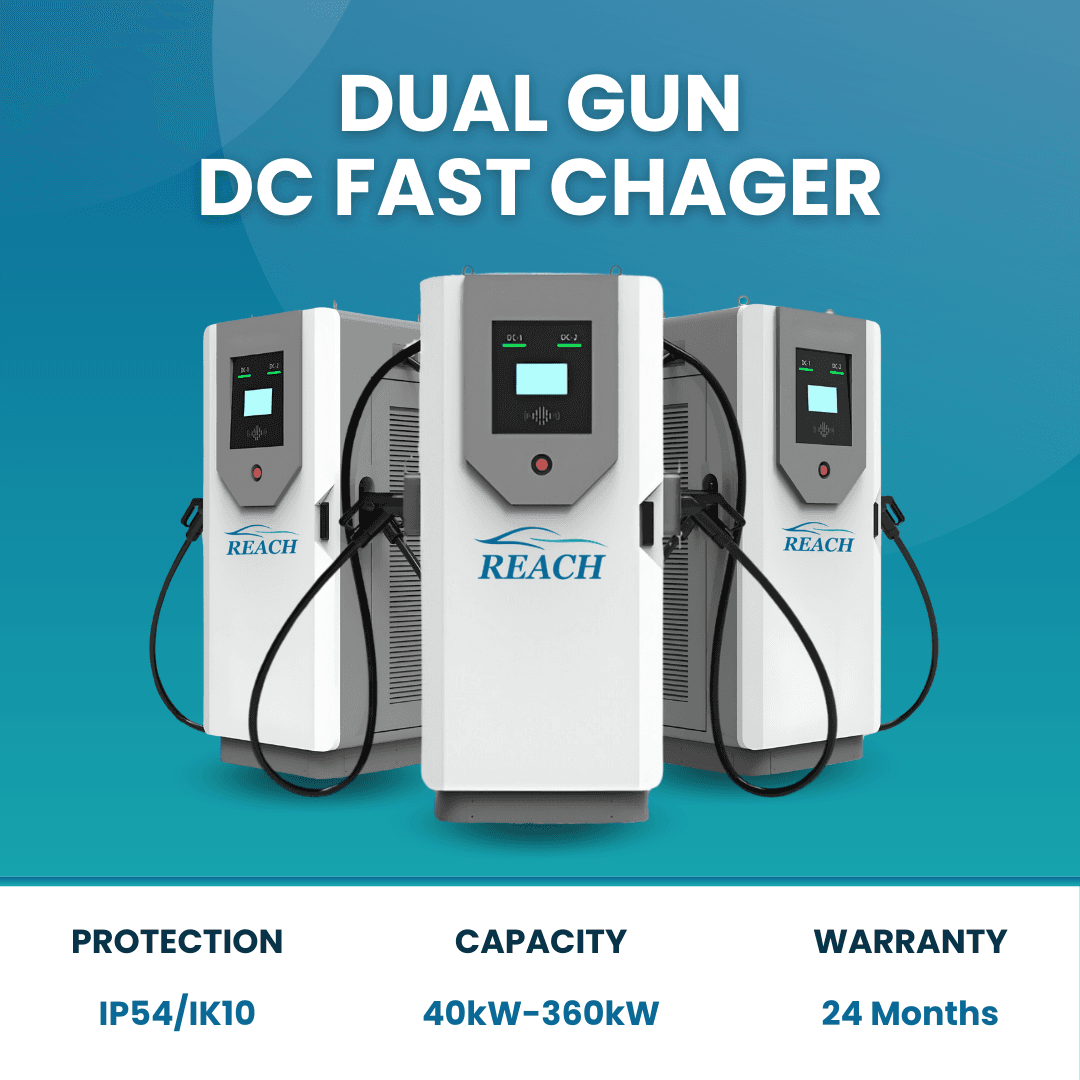

REACH CCS2 Dual Gun DC EV Fast Charger: 40 kW – 360 kW
DC CCS2 Stand Alone
Loaded with features like Dynamic Load Management and Power Optimization, these smart chargers ensure electric vehicles receive optimal power while minimizing energy waste.
Technical Specifications
Output characteristics
- Frequency (Hz)
- 50
- Max current (A)
- 150
Recommended environment
- Ambient min (°C)
- 25
- Ambient max (°C)
- 55
- Storage min (°C)
- 25
- Storage max (°C)
- 75
- Humidity min (%)
- 5
- Humidity max (%)
- 95
- Altitude max (m)
- 2000
Protection
- IP rating
- 65
- Cooling type
- Air Forced Cooled
- Overheating protection
- Yes
- Earth leakage protection
- Yes
Communication
- GSM
- Yes
- LAN
- Yes
- Wi-Fi
- Yes
- Ethernet
- No
- Supported protocols
- OCPP_1_6
Dimensions
- Height (mm)
- 700
- Width (mm)
- 1600
- Length (mm)
- 555
- Weight (kg)
- 3000
