Input specifications
- Voltage min (V)
- 350
- Voltage max (V)
- 460
- Phases
- 3
Loading Data...
DC
Zenerize EV

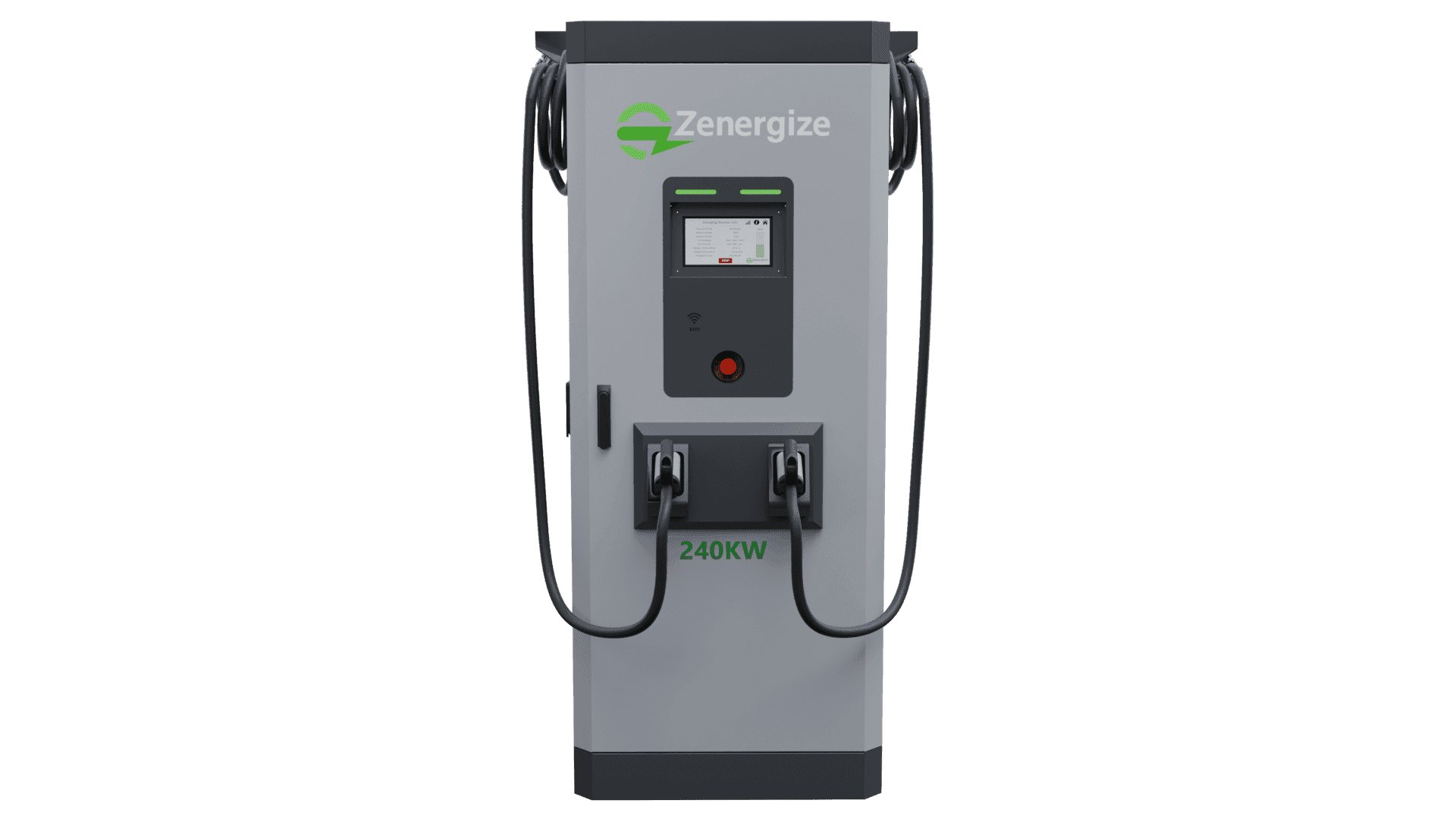

240kW DC Ultra Fast Charger
DC CCS2 Stand Alone
We are the first Indian DC Fast Charger OEM to design, develop and manufacture the Power Modules, PLC Controller, Insulation Monitoring Device, OCPP 2.0.1 controller, DC Charge Controller and HMI design indigenously. The complete software and hardware stack is developed in-house
Technical Specifications
Output characteristics
- Max current (A)
- 150
Recommended environment
- Ambient min (°C)
- -20
- Ambient max (°C)
- 55
- Storage min (°C)
- -20
- Storage max (°C)
- 70
- Humidity min (%)
- 5
- Humidity max (%)
- 95
- Altitude max (m)
- 20000
Protection
- IP rating
- 65
- Cooling type
- Forced Air Cooling
- Overheating protection
- Yes
- Earth leakage protection
- Yes
Communication
- GSM
- Yes
- LAN
- No
- Wi-Fi
- Yes
- Ethernet
- Yes
- Supported protocols
- OCPP_1_6
Dimensions
- Height (mm)
- 1850
- Width (mm)
- 1064
- Length (mm)
- 790
- Weight (kg)
- 350
