Input specifications
- Voltage min (V)
- 350
- Voltage max (V)
- 460
- Phases
- 3
Loading Data...
AC
Zenerize EV

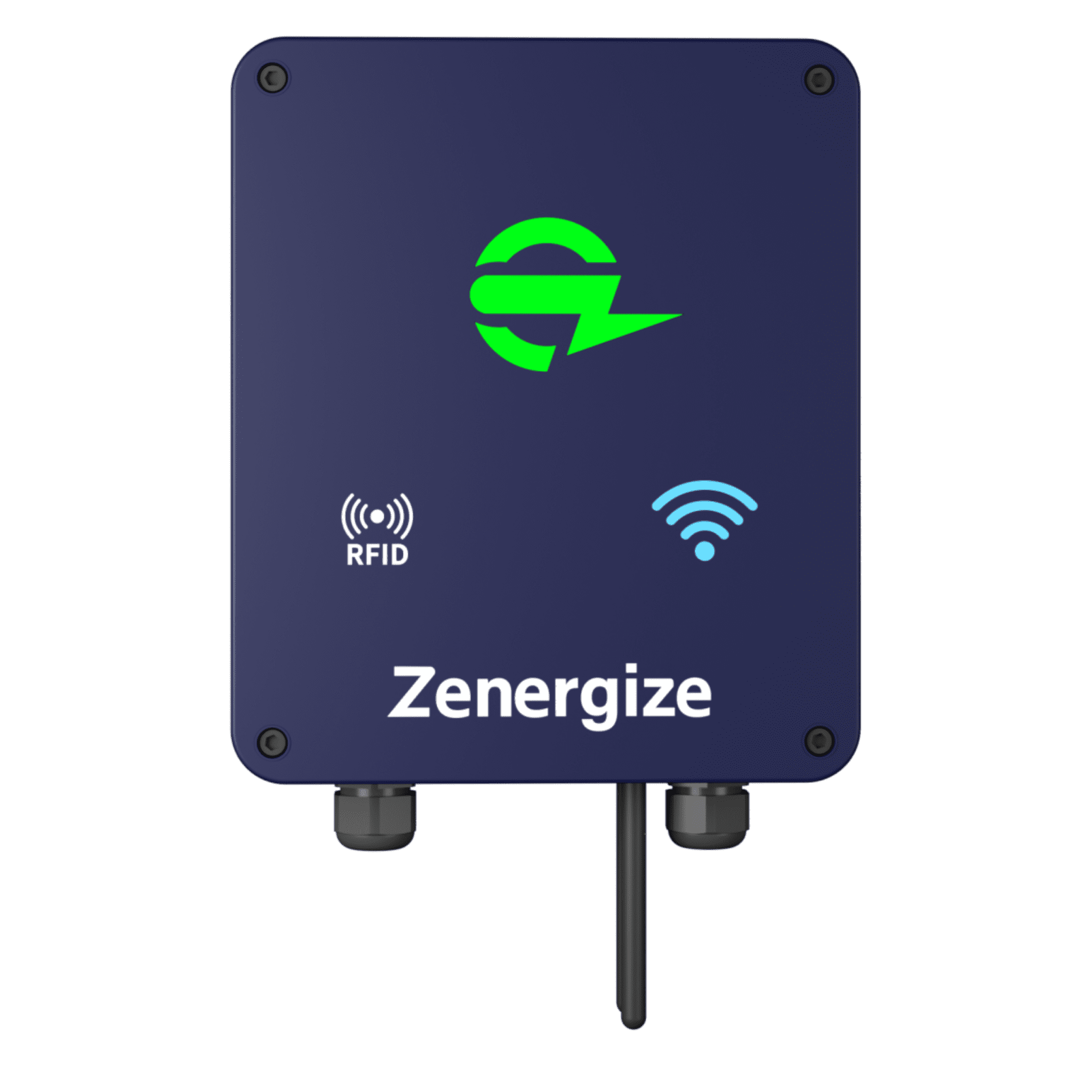

11kW EV AC Charger
AC TYPE2 Wall Mounted
Zenergize AC chargers offer power options from 7.4kW to 22kW with advanced features like auto-resume after power cuts, grid-adjustable current, and localized user interfaces. Fully compliant with global standards, these chargers ensure seamless integration, easy configuration, and reliable performance, making them ideal for both home and public use.
Technical Specifications
Output characteristics
- Voltage (V)
- 460
- Max current (A)
- 32
Recommended environment
- Ambient min (°C)
- -25
- Ambient max (°C)
- 50
- Storage min (°C)
- -25
- Storage max (°C)
- 70
- Humidity min (%)
- 5
- Humidity max (%)
- 95
- Altitude max (m)
- 2000
Protection
- IP rating
- 65
- Cooling type
- Natural Air Cooling
- Overheating protection
- Yes
- Earth leakage protection
- Yes
Communication
- GSM
- Yes
- LAN
- No
- Wi-Fi
- Yes
- Ethernet
- No
- Supported protocols
- OCPP_1_6
Dimensions
- Height (mm)
- 280
- Width (mm)
- 235
- Length (mm)
- 100
- Weight (kg)
- 5.5
