Input specifications
- Voltage max (V)
- 400
- Phases
- 3
Loading Data...
DC
TKT

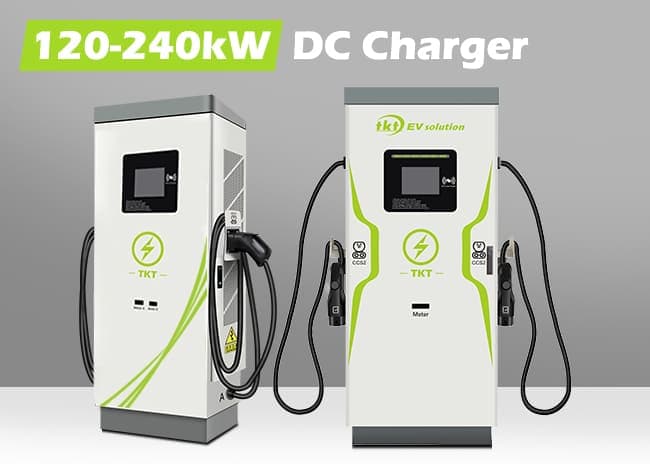

120-240 kW DC Fast Charging Stations
DC CCS2 Stand Alone
This DC fast charging stations is affordable and powerful. It can simultaneously charge 2 buses at high speed. 1. One Hour Charging: E-Bus Adds About 240-480km 2. Voltage Requirements: 3-Phase 400V ±15% 3. Connector Standard: CCS / CHAdeMO / GBT *2 4. Communication Protocols: OCPP1.6J 5. Application: Electric Bus Fleets, Commercial Fleets, Public Transportation, etc.
Technical Specifications
Output characteristics
- Max current (A)
- 400
Recommended environment
- Ambient min (°C)
- -30
- Ambient max (°C)
- 55
- Storage min (°C)
- -30
- Storage max (°C)
- 65
- Humidity min (%)
- 5
- Humidity max (%)
- 95
- Altitude max (m)
- 2000
Protection
- IP rating
- 54
- Cooling type
- Forced Air Cooling
- Overheating protection
- Yes
- Earth leakage protection
- Yes
Communication
- GSM
- Yes
- LAN
- No
- Wi-Fi
- No
- Ethernet
- Yes
- Supported protocols
- OCPP_1_6
Dimensions
- Height (mm)
- 868
- Width (mm)
- 600
- Length (mm)
- 1838
