Input specifications
- Phases
- 3
Loading Data...
DC
TKT

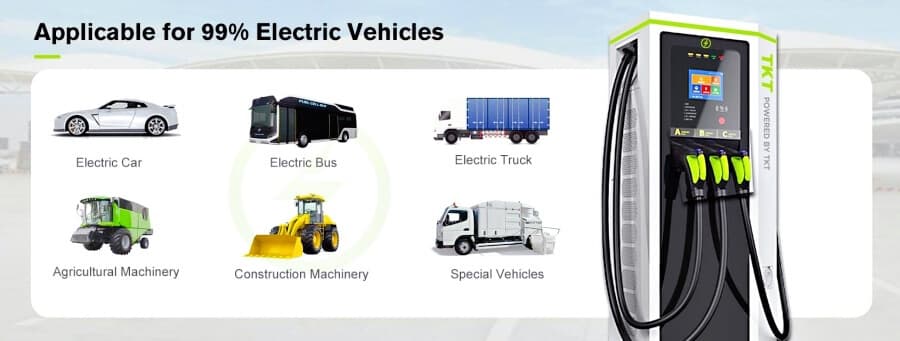

Three Outlet Level 3 EV Charger (90-240kW)
DC CCS2 Stand Alone
This Level 3 EV charger can charge up to 3 vehicles simultaneously and intelligently distributes power. 1. Connector Outlet: CCS / CHAdeMO / GBT *3 2. Voltage Requirements: 3-Phase 400V ±15% 3. Communication Protocols: OCPP1.6J 4. Application: Highways, Urban Centers, Commercial Fleets, Public Transportation, Charging Stations, etc.
Technical Specifications
Recommended environment
- Ambient min (°C)
- -30
- Ambient max (°C)
- 50
- Storage min (°C)
- -30
- Storage max (°C)
- 65
- Humidity min (%)
- 5
- Humidity max (%)
- 95
- Altitude max (m)
- 2000
Protection
- IP rating
- 54
- Cooling type
- forced Air Cooling
- Overheating protection
- Yes
- Earth leakage protection
- Yes
Communication
- GSM
- Yes
- LAN
- No
- Wi-Fi
- No
- Ethernet
- Yes
- Supported protocols
- OCPP_1_6
Dimensions
- Height (mm)
- 1600
- Width (mm)
- 687
- Length (mm)
- 477
