Input specifications
- Voltage max (V)
- 400
- Phases
- 3
Loading Data...
DC
TKT

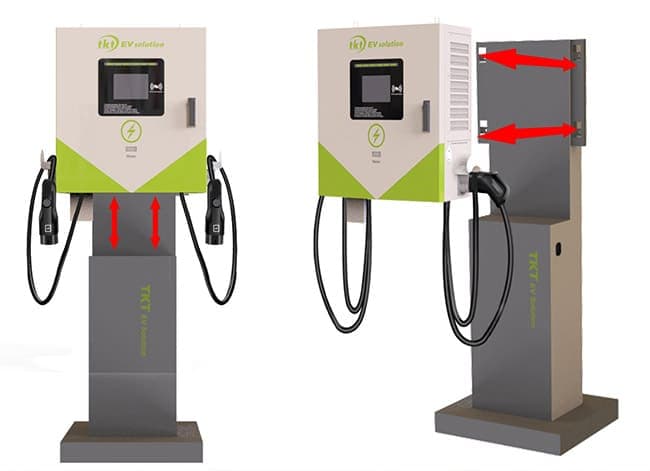

30/60kW DC Wallbox Charger
DC CCS2 Wall Mounted
This DC wallbox charger saves space and it can also be mounted with a base. Flexible and practical. 1. One Hour Charging: Cars Adds About 300-600km 2. Voltage Requirements: 3-Phase 400V ±15% 3. Connector Standard: CCS / CHAdeMO / GBT 4. Communication Protocols: OCPP1.6J 5. Application: Business Premises, Hotels, Workplaces, Charging Stations, etc
Technical Specifications
Output characteristics
- Voltage (V)
- 400
Recommended environment
- Ambient min (°C)
- -30
- Ambient max (°C)
- 50
- Storage min (°C)
- -35
- Storage max (°C)
- 55
- Humidity min (%)
- 5
- Humidity max (%)
- 95
- Altitude max (m)
- 2000
Protection
- IP rating
- 54
- Cooling type
- Forced air Cooling
- Overheating protection
- Yes
- Earth leakage protection
- Yes
Communication
- GSM
- Yes
- LAN
- No
- Wi-Fi
- No
- Ethernet
- Yes
- Supported protocols
- OCPP_1_6
Dimensions
- Height (mm)
- 886
- Width (mm)
- 375
- Length (mm)
- 1686
