Input specifications
- Voltage min (V)
- 400
- Voltage max (V)
- 1000
- Frequency (Hz)
- 50
- Phases
- 3
Loading Data...
DC
M Glads E Power

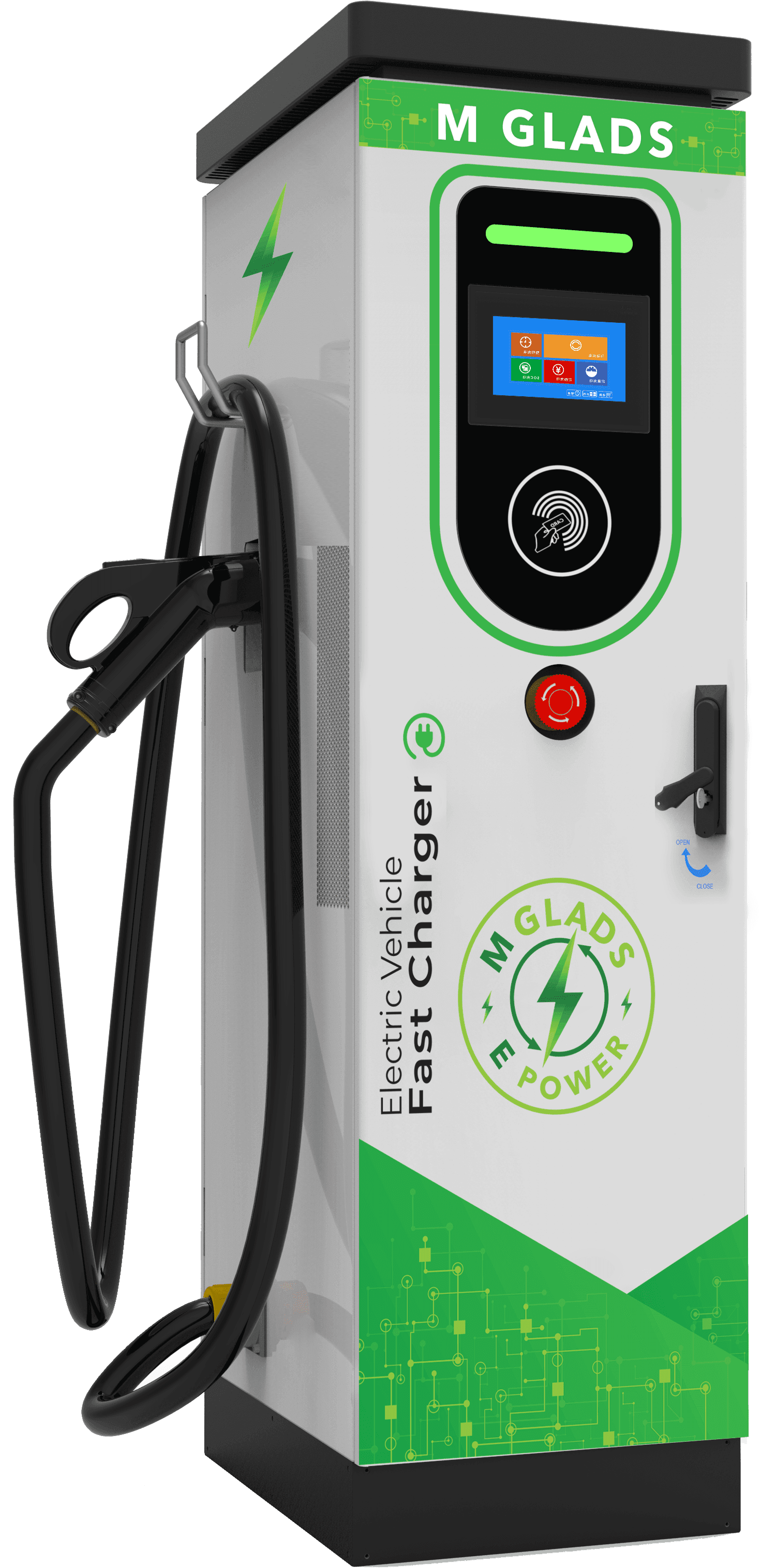

CCS – 2 Combo Fast Charger – (30kW | 60kW)
DC CCS2 Stand Alone
DC Chargers come with industry standard fast charging technology to support next generation EV. These are configurable, multi – protocol design chargers to support CCS CHAdeMO for fast charging. The seamless integration with various payment and billing platforms enable easy and secure payments via smart phone or RFID card. The DC charger boosts the EV battery from 20% – 80% in around 90 minutes based on battery pack size.
Technical Specifications
Recommended environment
- Ambient min (°C)
- -30
- Ambient max (°C)
- 50
- Humidity min (%)
- 5
- Humidity max (%)
- 95
- Altitude max (m)
- 2500
Protection
- IP rating
- 55
- Cooling type
- Forced Air cooled
- Overheating protection
- Yes
- Earth leakage protection
- Yes
Communication
- GSM
- Yes
- LAN
- No
- Wi-Fi
- Yes
- Ethernet
- Yes
- Supported protocols
- OCPP_1_6
Dimensions
- Height (mm)
- 500
- Width (mm)
- 700
- Length (mm)
- 1650
- Weight (kg)
- 250
