Input specifications
- Voltage min (V)
- 230
- Voltage max (V)
- 415
Loading Data...
AC
M Glads E Power

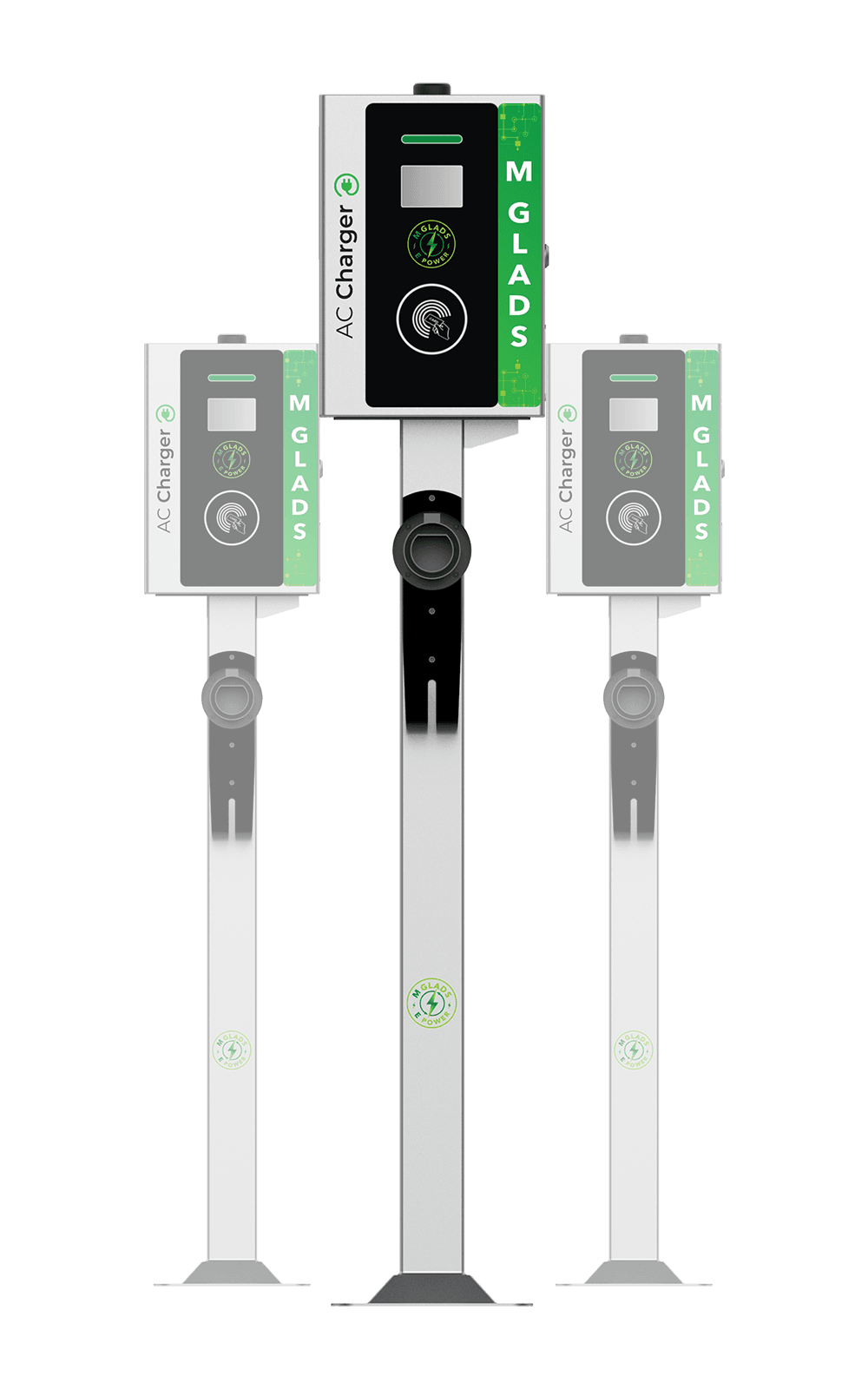

AC Type II EV Charger – (7.4 kW | 22 kW Chargers)
AC TYPE2 Stand Alone
AC Charger provides high quality and cost effective electric car charging. It can be used by all AC Type II charger compatible vehicles with output ranging from 3.3kW to 22kW, making to suitable to meet the Market demands
Technical Specifications
Output characteristics
- Frequency (Hz)
- 50
- Max current (A)
- 32
Recommended environment
- Ambient min (°C)
- -30
- Ambient max (°C)
- 50
- Humidity min (%)
- 5
- Humidity max (%)
- 95
- Altitude max (m)
- 2500
Protection
- IP rating
- 54
- Cooling type
- Natural Cooling
- Overheating protection
- Yes
- Earth leakage protection
- Yes
Communication
- GSM
- Yes
- LAN
- No
- Wi-Fi
- Yes
- Ethernet
- Yes
- Supported protocols
- OCPP_1_6
Dimensions
- Height (mm)
- 250
- Width (mm)
- 151
- Length (mm)
- 1451
- Weight (kg)
- 10
