Input specifications
- Voltage min (V)
- 200
- Voltage max (V)
- 415
- Frequency (Hz)
- 50
- Phases
- 1
Loading Data...
AC
M Glads E Power

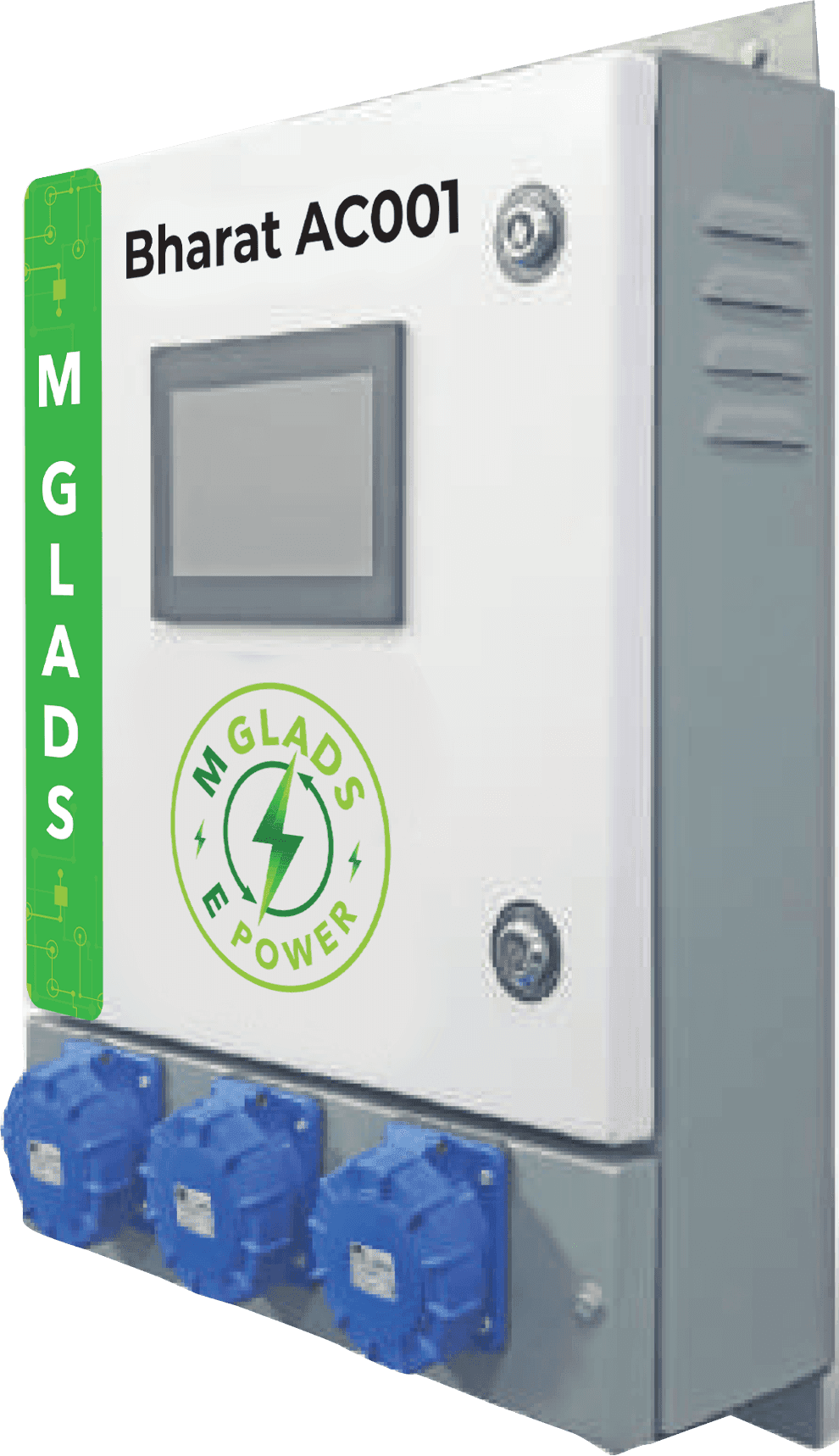

Bharat AC001 – (3.3kW | 10kW)
AC TYPE2 Wall Mounted
AC Charger provides high quality and cost effective electric car charging. It can be used by all AC Type II charger compatible vehicles with output ranging from 3.3kW to 22kW, making to suitable to meet the Market demands
Technical Specifications
Output characteristics
- Voltage (V)
- 230
- Frequency (Hz)
- 50
- Max current (A)
- 15
Recommended environment
- Ambient min (°C)
- 0
- Ambient max (°C)
- 50
- Storage min (°C)
- 10
- Storage max (°C)
- 75
- Humidity min (%)
- 5
- Humidity max (%)
- 95
- Altitude max (m)
- 2000
Protection
- IP rating
- 54
- Overheating protection
- Yes
- Earth leakage protection
- Yes
Communication
- GSM
- No
- LAN
- Yes
- Wi-Fi
- Yes
- Ethernet
- No
- Supported protocols
- OCPP_1_6
