Input specifications
- Voltage min (V)
- 220
- Voltage max (V)
- 240
- Frequency (Hz)
- 50
- Phases
- 1
- Standby power
- < 10 W
Loading Data...
AC
Plugzmart

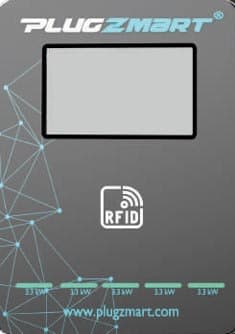

AC Single Connector (5x 3.3 kW)
AC OTHER 3.3 kW Output Wall Mounted Portable
• IP55 - Designed for indoor and outdoor usage OCPP 1.6J & 2.0.1 Compliant • Remote software updates for new features & upgrades. • Simple plug-and-play installation compact & • elegant design socket or fixed cable. Ethernet/Wi-Fi/GSM-based cloud communication 2x based • cloud communication Optional RFID for user authentication and network connectivity • for remote Management, managing energy costs, etc. Configure either in Public mode or Private mode.
Technical Specifications
Output characteristics
- Voltage (V)
- 230
- Rating (kW)
- 3.3
- Max current (A)
- 16
- Outputs
- 1
UI & controls
- Dedicated display
- Yes
- Push buttons
- Yes
- Requires authentication
- Yes
- Auth methods (comma separated)
- RFID, QR code
Protection
- IP rating
- IP55
- Overheating protection
- No
- Earth leakage protection
- No
- Over Current
- Cut off when higher than Max output current value
- Over Voltage
- > 270 Vac
- Under Voltage
- < 180 Vac
- Surge Protection
- External, 1.5kV
- Residual Current Leakage Breaking
- External, 30 mA
Communication
- GSM
- No
- LAN
- No
- Wi-Fi
- Yes
- Ethernet
- Yes
- Supported protocols
- OCPP_1_6
Dimensions
- Height (mm)
- 264
- Width (mm)
- 363
- Length (mm)
- 166
- Weight (kg)
- 15.5
- Footprint
- Wall or Floor using pedestal
